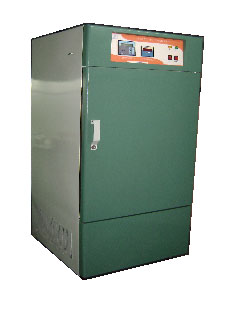

ENVIRONMENTAL TEST CHAMBER |
| |
|
| |
 |
| |
INTRODUCTION:- |
| |
|
| |
Laboratory Environment Test chambers are designed & fabricated to suit Various I. S. standards application in the growing field of Medical, Agricultural, Industrial, Research laboratories, Metal Treatment & Various industrial. It has a cutting edge technology to challenge &maintain Climatic conditions above freezing what so ever & where ever your need.
|
| |
|
| |
FEATURES :- |
| |
a) Temperature + 100 C to 600 C |
| |
b) Humidity (R.H.) 40% R.H. to 95% R.H. |
| |
c) Digital Display Electronic Temperature cum R.H. |
| |
( Humidity ) Controller With an accuracy of +/-0.5 0 C & +/-3% R.H. |
| |
|
| |
TECHNICAL SPECIFICATION :- |
| |
| Capacity |
90.0 ltrs. |
170.0ltrs. |
285.0ltrs. |
340.0ltrs. |
| Dimension |
Inner |
40 x 40 x 57 |
50 x 40 x 85 |
57 x 57 x 58 |
60 x 60 x 95 |
| Outer |
53 x 68 x 135 |
63 x 68 x 163 |
70 x 85 x 166 |
73 x 88 x 173 |
| Chamber |
Internal |
Stainless Steel 304 / 316L quality |
| External |
Mild Steel powder coated / Stainless steel Matt Finish |
| Temperature |
Range |
+ 100 C to 600 C |
| Accuracy |
± 0.50 C fo set value for temp. /± 3% R.H. (humidity) |
| Uniformity |
± 0.50 C for temp ± 3% Humidity |
| Water tank cartridge |
Reservoir |
4ltrs. |
4ltrs. |
9ltrs. |
9ltrs. |
| Boiler |
4ltrs. |
4ltrs. |
9ltrs. |
9ltrs. |
| Shelves |
2 |
2 |
3 |
3 |
| Colour |
Plate fin colour |
| Controller |
Digital Display Electronic Controllers |
| Compressor |
Hermetically sealed Brand New Kirloskar Compressor |
| Sensor |
Pt 100 for Dry and Wet Bulb capacitor type for Humidity. |
| Insulation |
Body |
Puf 50 mm / Glass Wool 65 mm |
| Door |
Thermo Cole |
| Inner Acrylic Door |
Inner Full Size Through Acrylic 8mm thick |
| Circulation |
1/12 Hp, 1440 R.P.M. Motorized blower from back |
| Heat up time |
30min. up to + 600 C. without load |
| Cool down time |
30min. up to + 600 C. without load |
| Steam Injection system |
I.S.I. Mark Kettel Heater |
|
| |
|
| |
Optional :- |
| |
|
| |
Imported Sensor 0 to 100% R. H. , Accuracy of ± 20 C |
| |
Computer Interface RS 485 / RS 232 interface for multiple / single communication port |
| |
Safety devoice Thermostat or Energy Regulator. over heating or humidity soft alarm. |
| |
Cyclic timer 0 to 24 hrs x 7 days cyclic ON / OFF timer for illuminating condition. |
| |
|
