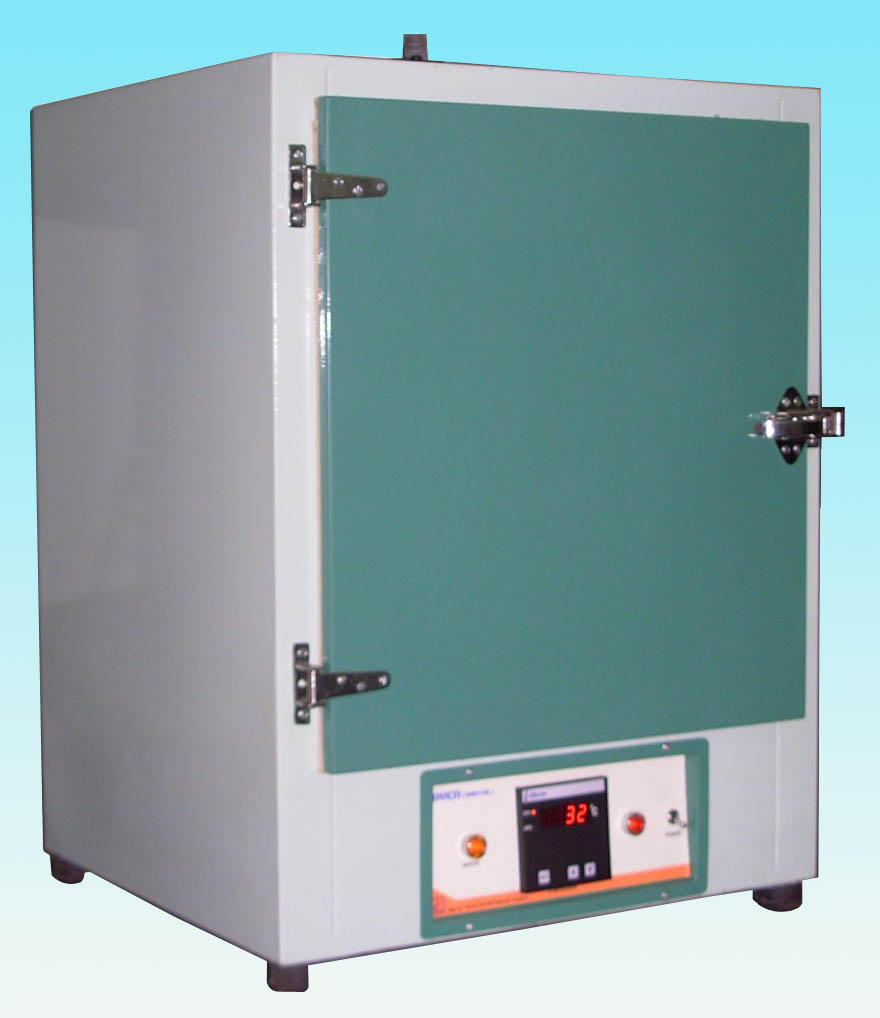

Oven



Uaser- friendly Digital temperature control allows you to repeatedly set operation temperature in the range of ambient +50 C to 2500 C. single program controller with adjustable high-low limit. 3" thick Glass wool insulation between oven chember and exterior walls helps minimize heat radiation to surrounding environment. The Drawer Style controlls panel is protected from spills and easily pulls out for accessibility. Interior chamber is constructed of stainless steel for easy cleaning. Exterior is constructed of mild steel with powder coat finish.

  TECHNICAL SPECIFICATION :

Chamber size Watts shelves
W      D      H   1
12"x 12"x12" 1000 2
14"x14"x14" 1450 2
18"x18"x18" 1750 3
18"x18"x24"  2000 3
24"x24"x24" 2500  3
18"x24"x36"  3000 3
24"x24"x36"  3500 3

   OPTIONAL

Shelves shall be supplied with above ovens of galvanized wire mesh.
                       1)  Shelves made of stainless steel will be supplied at extra cost.
                       2)  Air forced circulation fan can be supplied at extra coast for better accuracy
                       3)  We can fabricate any size of oven as per customer specification.
                       4)  PID microprocessor temperature controller cum indicator.
                       5)  Controller Interface through RS232C / RS 485 for multiple networking
